MERN Project Arch.

• Frontend
  • React
• Backend
  • Fastify
• Database
  • MongoDB

Deployment Strategy

1. Frontend server and Backend server
2. Only Backend server

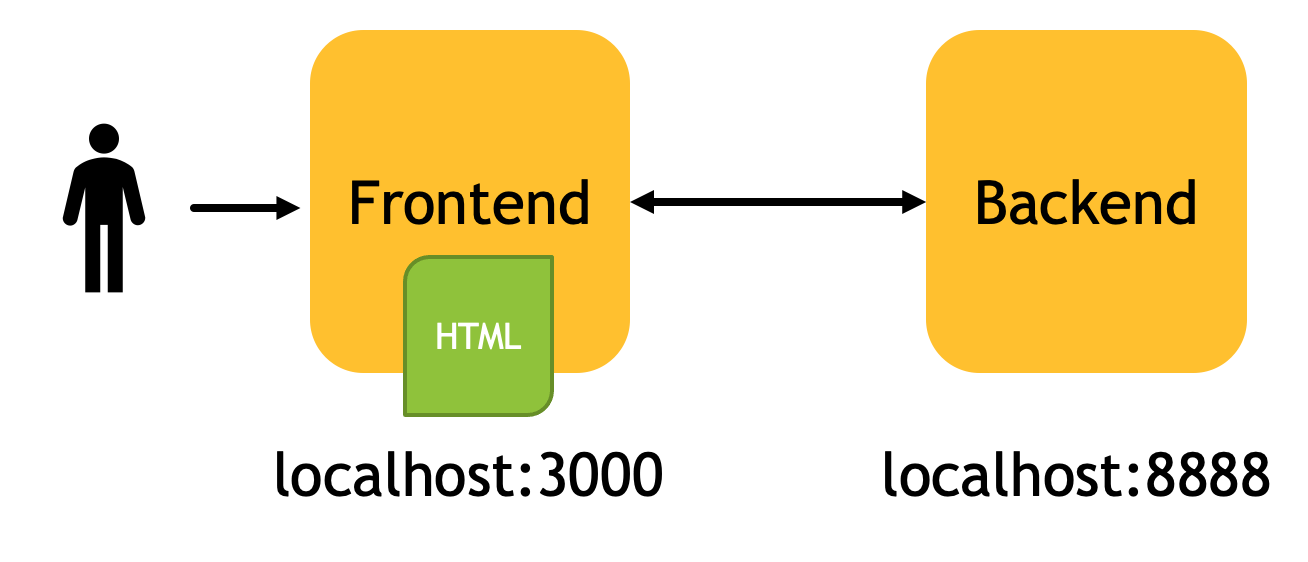

1. Frontend server and Backend server

• Frontend
  • Has its own server to serve the frontend files (HTML, CSS, JavaScript)
  • Listen a port different from backend
• Backend
  • Listen a port different from frontend

• CORS issue
• User can visit website even backend server is down

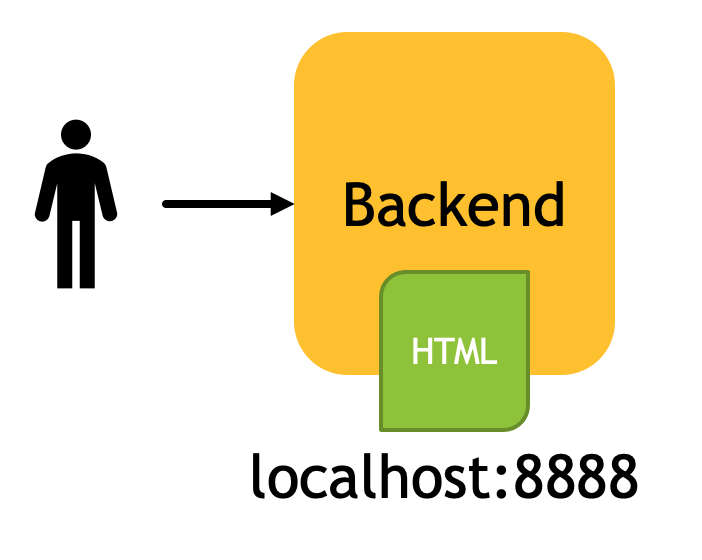

2. Only Backend Server

• use backend server to serve frontend code

Create MERN Project

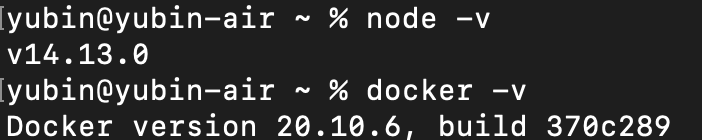

Environment

• Node v14
• docker (for create MongoDB container)

Editor

• vscode
• GitPod (https://gitpod.io)

• create project folder

mkdir myMernProject
cd myMernProject
git init

• create backend project

mkdir backend
cd backend
npm init

• Install dependencies of backend project

npm i fastify fastify-cors pino-pretty mongoose dotenv
npm i -D typescript @types/node @types/mongoose
npx tsc --init

edit backend/tsconfig.json

"include": ["src/**/*.ts"],
"exclude": ["node_modules", ".vscode"],

"compilerOptions": {
  "outDir": "./out",
  "rootDir": "./src",
}

create backend/.env

MONGO_HOST=localhost
MONGO_PORT=27017
MONGO_DATABASE=mern_demo
FASTIFY_PORT=8888
FASTIFY_ENABLE_LOGGING=true
ENV=dev

create backend/src/plugins/mongodb.ts

import mongoose from 'mongoose'
import * as dotEnv from 'dotenv'

dotEnv.config()
const host = process.env.MONGO_HOST || 'localhost'
const port = process.env.MONGO_PORT || 27017
const database = process.env.MONGO_DATABASE || 'fastify'

const establishConnection = () => {
  if (!process.env.JEST_WORKER_ID && mongoose.connection.readyState === 0) {
    mongoose.connect(
      `mongodb://${host}:${port}/${database}`,
      { useNewUrlParser: true, useUnifiedTopology: true, useFindAndModify: false },
      (err) => {
        if (!err) console.log('MongoDB connection successful.')
        else console.log('Error in DB connection : ' + JSON.stringify(err, undefined, 2))
      }
    )
  } else {
    console.log('MongoDB has connected.')
  }
}

export { establishConnection }

create backend/src/server.ts

import fastify, { FastifyInstance, FastifyReply, FastifyRequest } from 'fastify'
import { Server, IncomingMessage, ServerResponse } from 'http'
import { establishConnection } from './plugins/mongodb'

const server: FastifyInstance<Server, IncomingMessage, ServerResponse> = fastify({
    logger: { prettyPrint: true }
})

const startFastify: (port: number) => FastifyInstance<Server, IncomingMessage, ServerResponse> = (port) => {

    server.register(require('fastify-cors'), {})

    server.listen(port, (err, _) => {
        if (err) {
            console.error(err)
        }
        establishConnection()
    })

    server.get('/ping', async (request: FastifyRequest, reply: FastifyReply) => {
        return reply.status(200).send({ msg: 'pong' })
    })

    return server
}

export { startFastify }

create backend/src/index.ts

import { startFastify } from './server'

// Start your server
const server = startFastify(8888)

export { server }

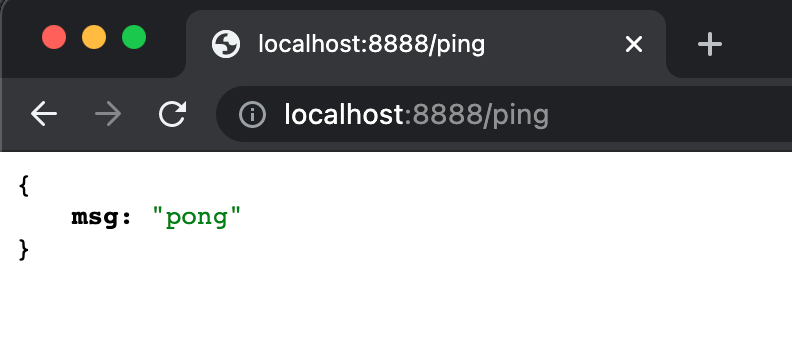

build and run

• make sure you have mongodb

docker run -d -p 27017:27017 mongo

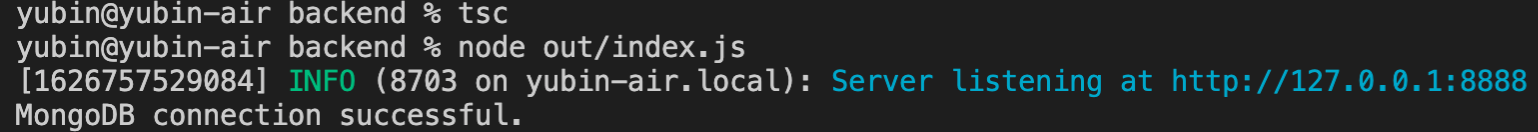

• build with tsc, run with node

tsc
node out/index.js

Add Mongo Schema

create backend/src/models/cat.ts

import { model, Schema } from 'mongoose'

const catSchema: Schema = new Schema(
    {
        name: {
            type: String,
            required: true
        }
    },
    {
        timestamps: true
    }
)

export default model("Cat", catSchema)

add API endpoint

• edit backend/src/server.ts

import Cat from './models/cat'

server.get('/cats', async (request: FastifyRequest, reply: FastifyReply) => {
    const cats = await Cat.find({}).exec()
    return reply.status(200).send({ cats })
})

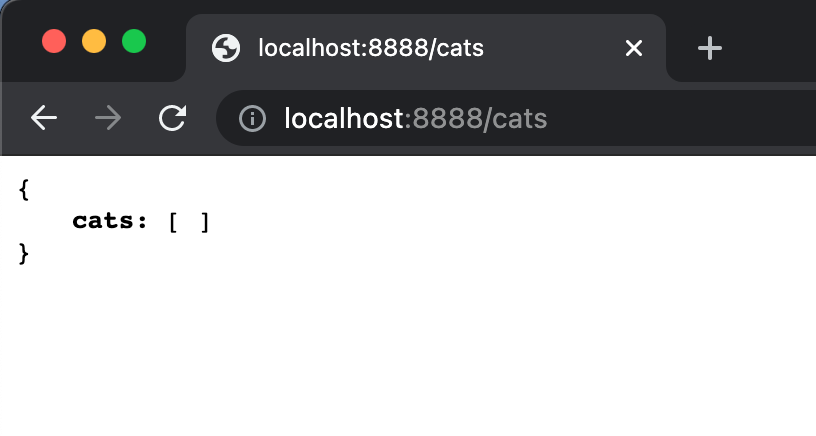

visit the endpoint

Create a endpoint for adding data

• edit backend/src/server.ts

server.post('/cats', async (request: FastifyRequest, reply: FastifyReply) => {
    const postBody = request.body
    const cat = await Cat.create(postBody)
    return reply.status(200).send({ cat })
})

rebuild and rerun

• use API client to send json data
  • Postman
  • curl

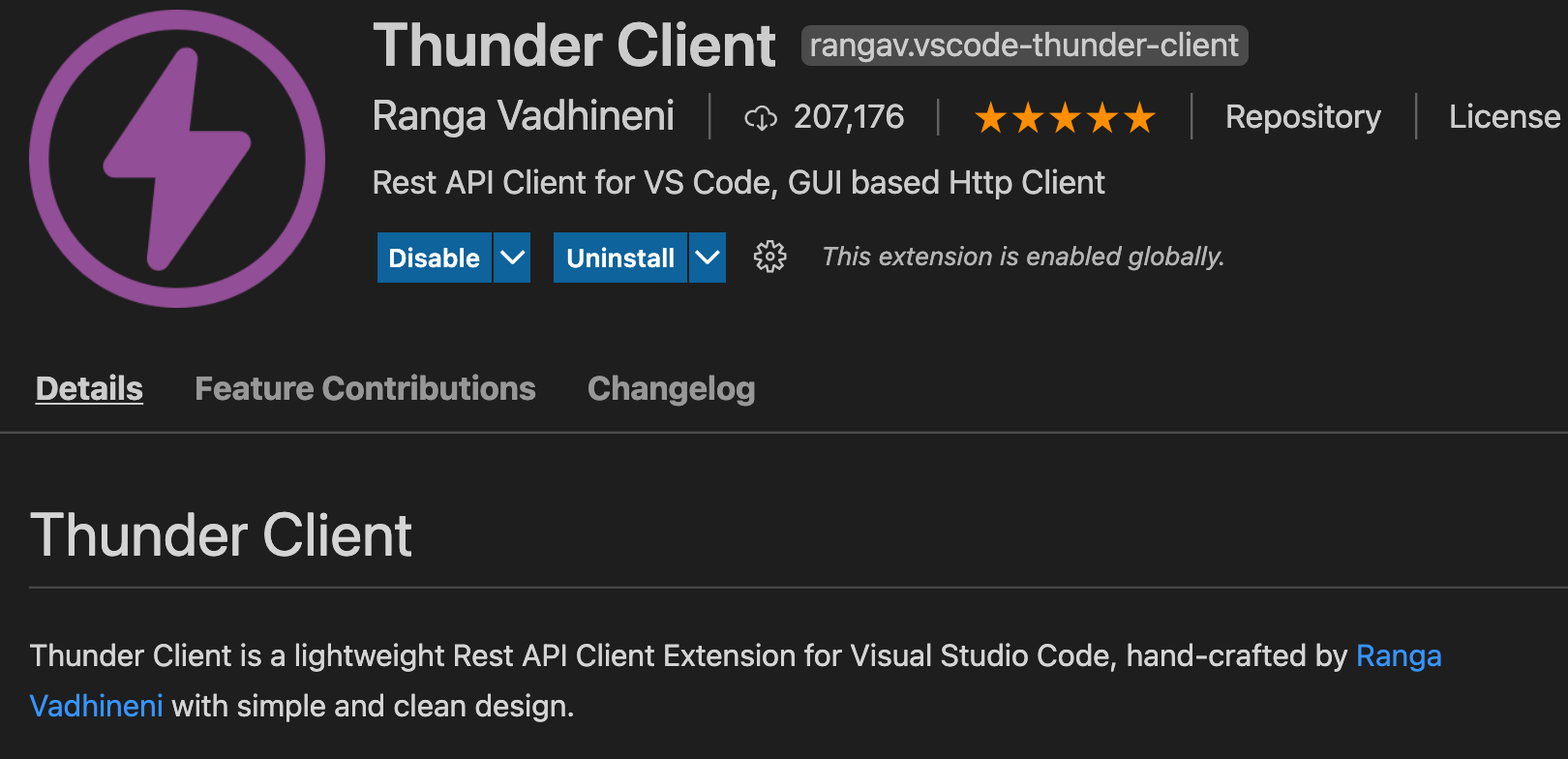

  • Thunder Client (vscode extension)

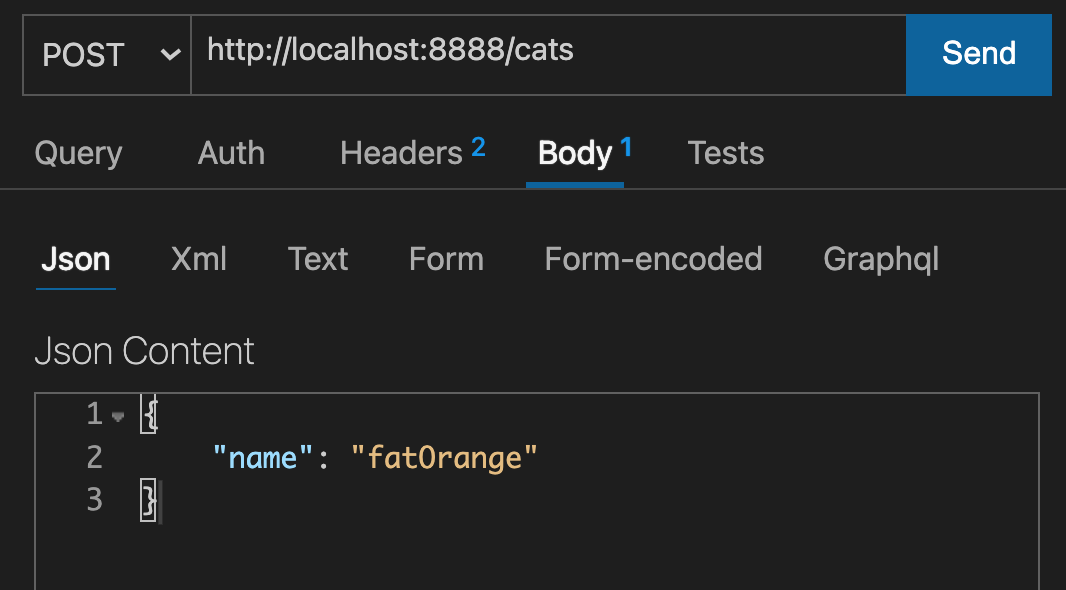

Thunder Client

POST http://localhost:8888/cats

with json body

{
  "name": "fatOrange"
}

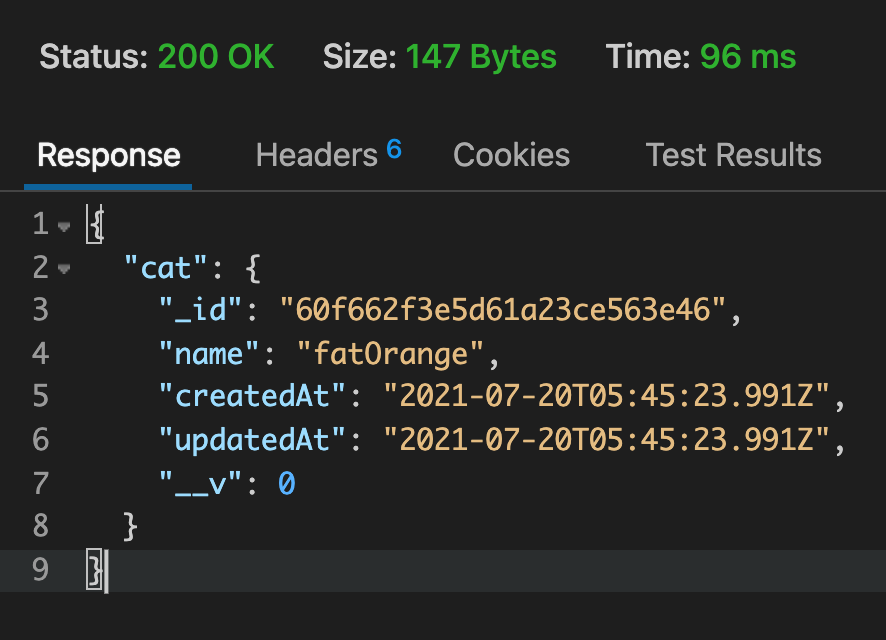

Get the response

Finish API

• GET /cats
• POST /cats

Define custom npm scripts

• edit backend/package.json

"scripts": {
  "build": "tsc",
  "start": "node out/index.js"
},

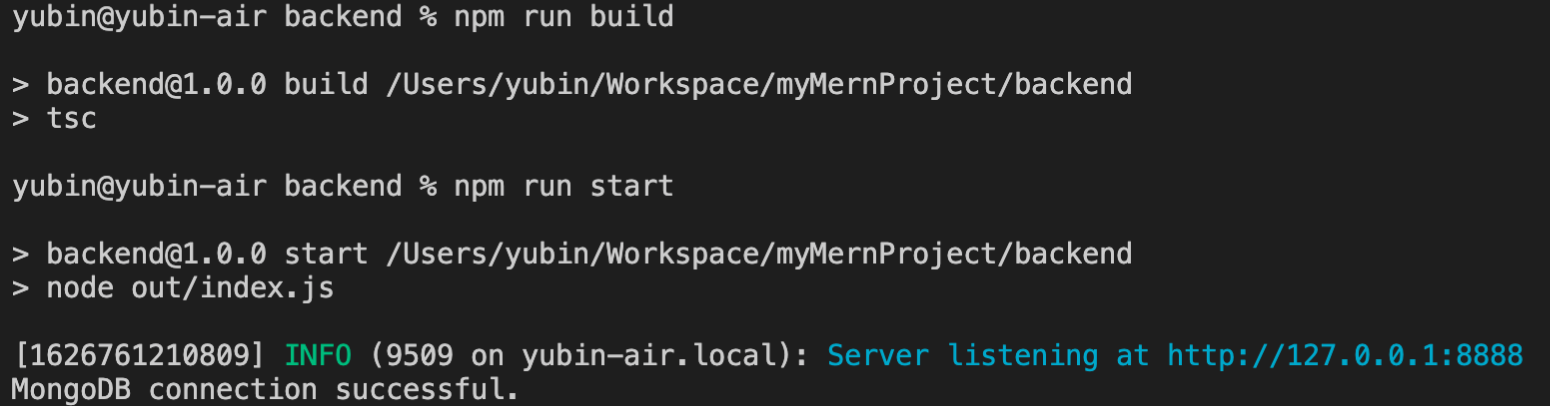

Use custom npm script

Use create-react-app module

https://github.com/facebook/create-react-app

cd ..
npx create-react-app frontend --template typescript

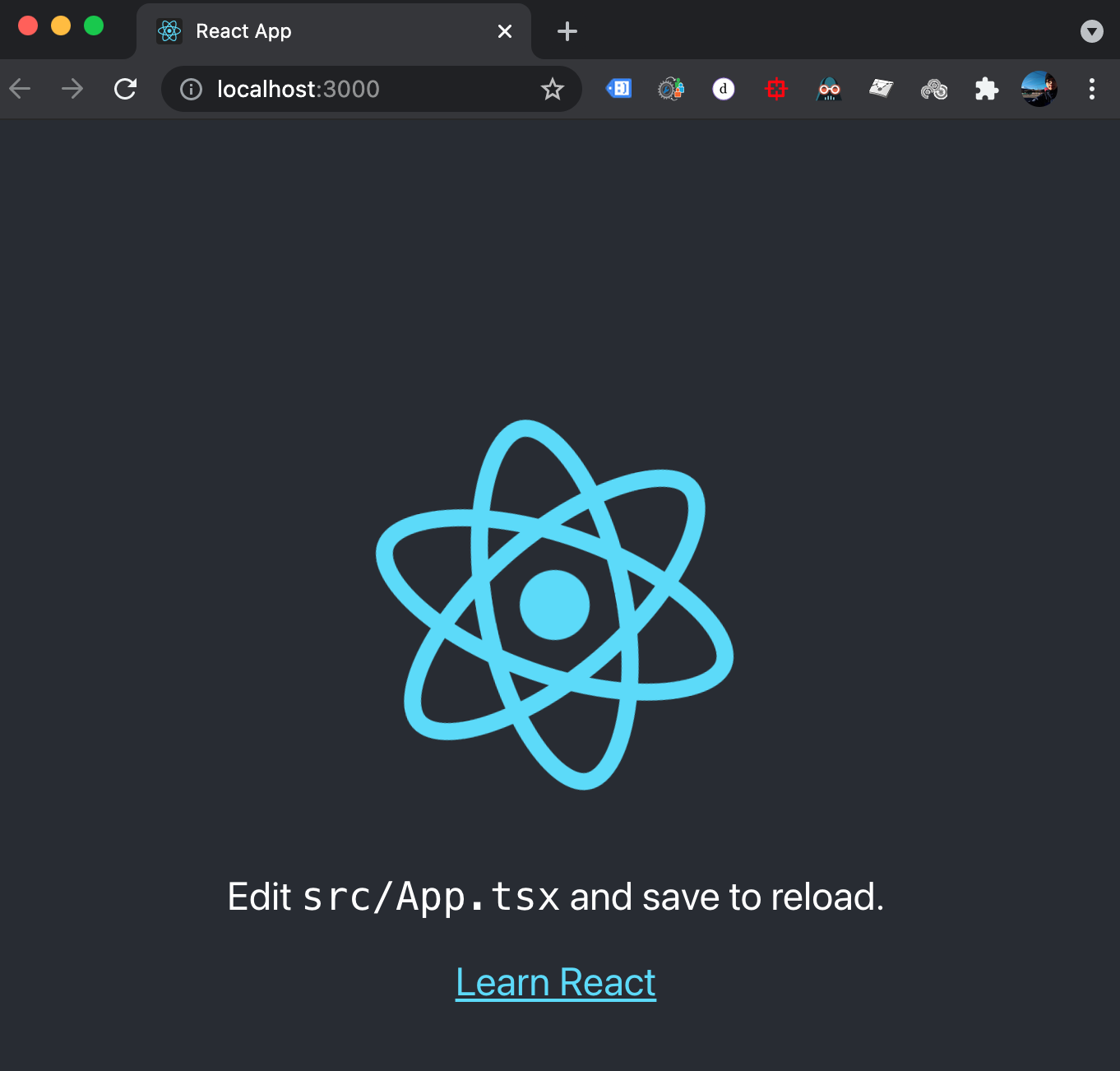

Run the frontend project

cd frontend
npm run start
